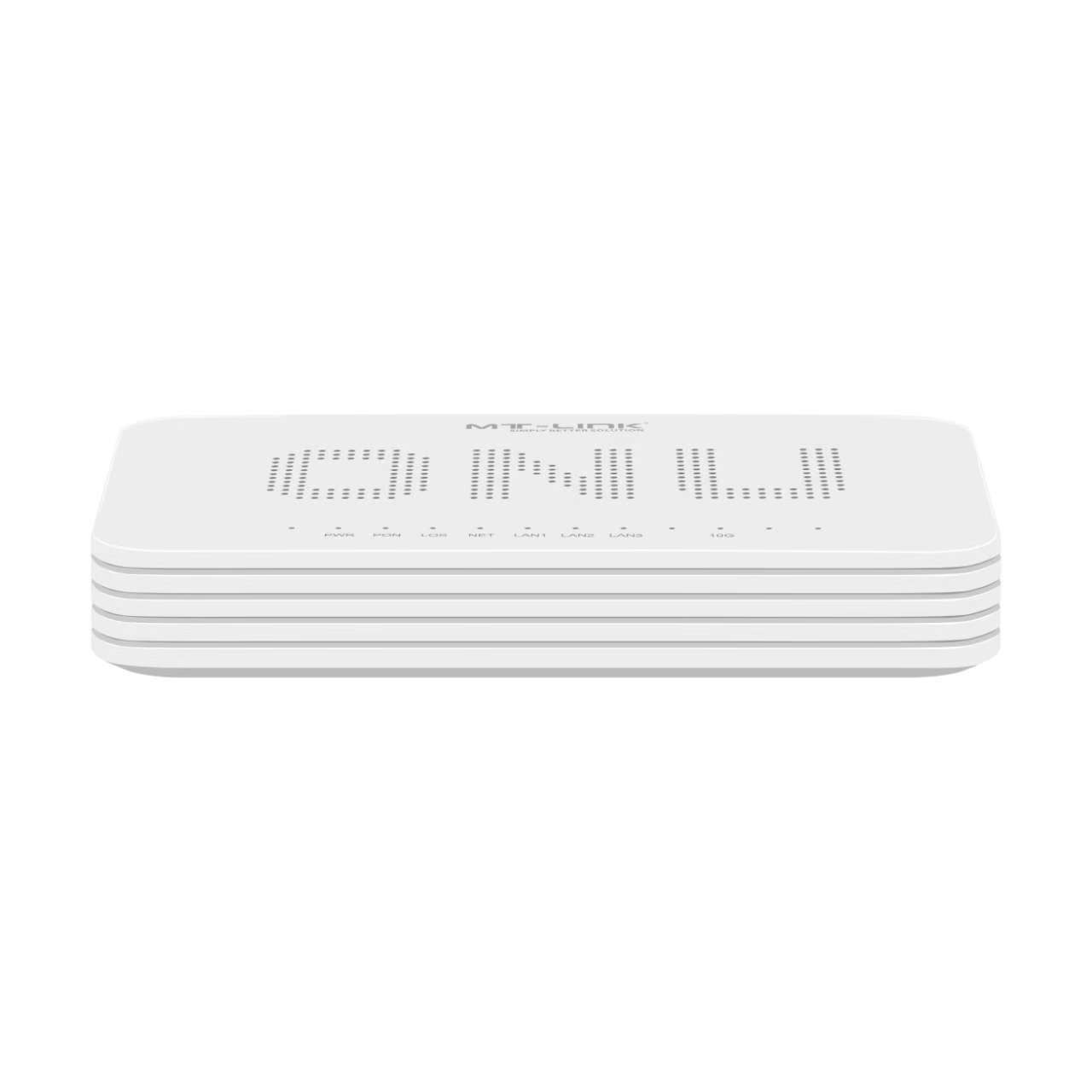

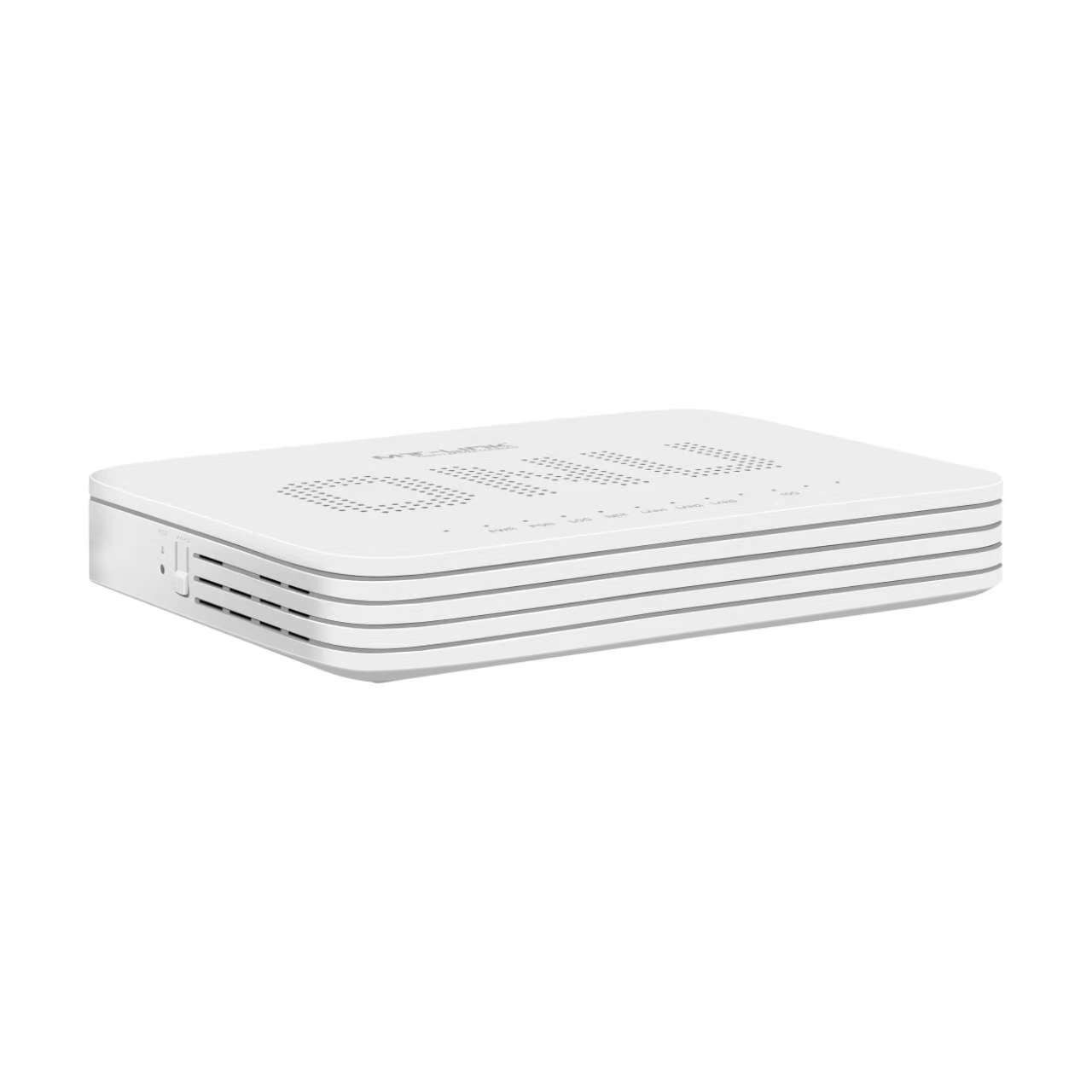

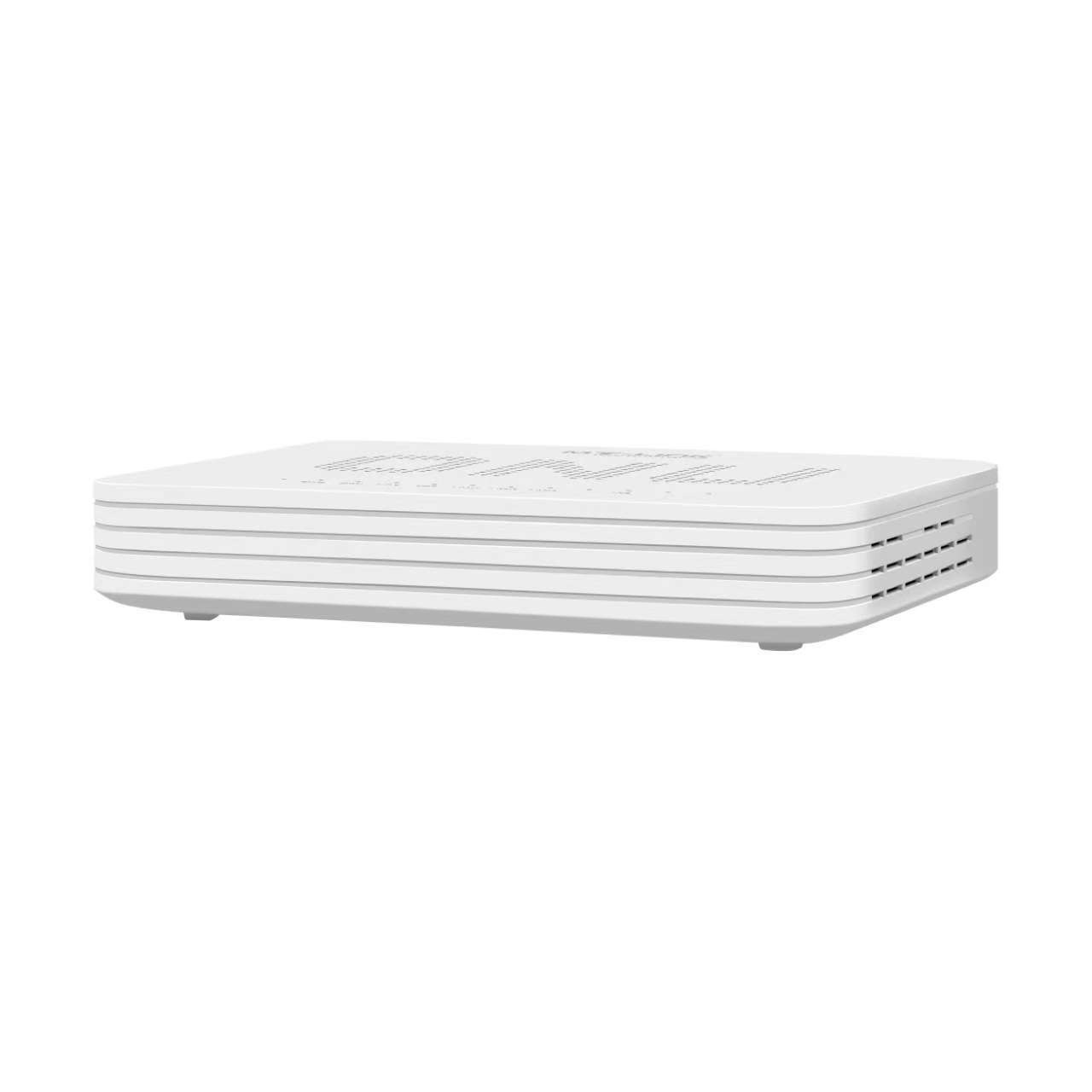

MT-1604

XPON Onu Fiber for WiFi Router

Structure: 4*1000M Ethernet interface (RJ45)；1*EPON/GPON adaptive interface.

Setting: Set up through the web interface or the management software that comes with the optical modem
Value: Usually lower than multi-port optical modems, suitable for users with limited budgets.
Consumption: Low power consumption and more energy-saving and environmentally friendly.
Scenario: Only one router in the home needs to connect to the Internet

Small single port optical network unit is a fiber optic access terminal device that converts optical signals into electrical signals and provides an Ethernet interface. It is usually provided by telecom operators for home broadband access.

Categories: , , ,

Specifications

User interface
4* 10/100/1000M RJ45 port

Pon
EPON&GPON mode adaptive lnterface Type: SC-UPC/SC-APC Network coverage radius: 20KM
GPON: upstream 1.25Gbps /down stream 2.5Gbps Optical receive sensitivity: ≥-7~-28dBm Continuo us light power: 0.5dBm~+5dBm
EPON: upstream 1.25Gbps /down stream 1.25Gbps Optical receive sensitivity: ≥-7~-27dBm Continuo us light power: 0dBm~4dBm

Ethernet
4*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance

Size
105mm(L)×85mm(W)×25mm(H)
Environment
Operating temperature: 0℃ 60℃ Operating humidity: 10% 85% (non-condensing Storage temperature: -40℃ 80℃ Storage humidity: 5% 95% (non-condensing)

Power supply
12V 0.5A DC power interface size: 2.1mm/ 5.5mm

Power
3W

Man
Web/ TELNET/ TR069/ OAM/ OMCI

Application Diagram

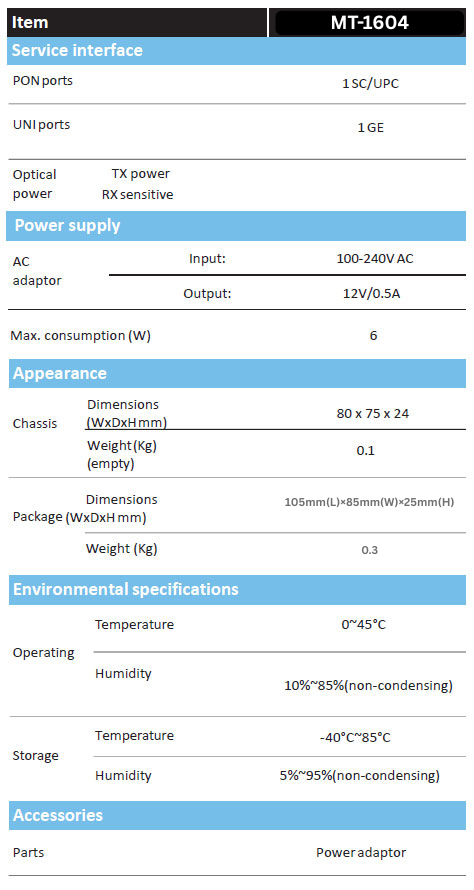

System Performance

User Interface Pon Ethernet
  • 1* 10/100/1000M RJ45 port

  • EPON&GPON mode adaptive

    lnterface Type: SC-UPC/SC-APC

    Network coverage radius: 20KM

    GPON: upstream 1.25Gbps /down stream 2.5Gbps

    Optical receive sensitivity: ≥-7~-28dBm

    Continuo us light power: 0.5dBm~+5dBm

    EPON: upstream 1.25Gbps /down stream 1.25Gbps

    Optical receive sensitivity: ≥-7~-27dBm

    Continuo us light power: 0dBm~4dBm

  • 4*10/100/1000M auto-negotiation

    Full/half duplex mode

    RJ45 connector

    Auto MDI/MDI-X

    100m distance
Environment  Power Supply Size

  • Operating temperature: 0℃～60℃

    Operating humidity: 10%～85% (non-condensing）

    Storage temperature: -40℃～80℃

    Storage humidity: 5%～95%  (non-condensing）

  • 12V 0.5A DC

    power interface size: 2.1mm/ 5.5mm
  • 105mm(L)×85mm(W)×25mm(H)
Key Features Lan Port

  • Support port - based rate limitation and bandwidth control.

  • ln compliant with IEEE802.3 ah &ITU-T G.984 adaptive interface.

  • Up to 20KM transmission distance.

  • Support data encryption, group broadcasting, port Vlan separation, etc.

  • Support Dynamic Bandwidth Allocation (DBA)

  • Support ONU auto - discovery/ Link detection/ remote upgrade of software.

  • Support port mode of VLAN configuration.

  • Support power - off alarm function, easy for link problem detection.

  • Support broadcasting storm resistance function.

  • Support port loop detection.

  • Support ACL to configure data packet filter flexibly.

  • Support PPPoE/ DHCP Server/ IPTV/ NAT.

  • Specialized design for system breakdown prevention to maintain stable system.

  • Support software online upgrading.

  • Support mac/ port/ url filter.
  • On: Ethernet connection is normal
    Blinking: Data is being transmitted
    Off: Ethernet connection is not set up
