Detailed Description

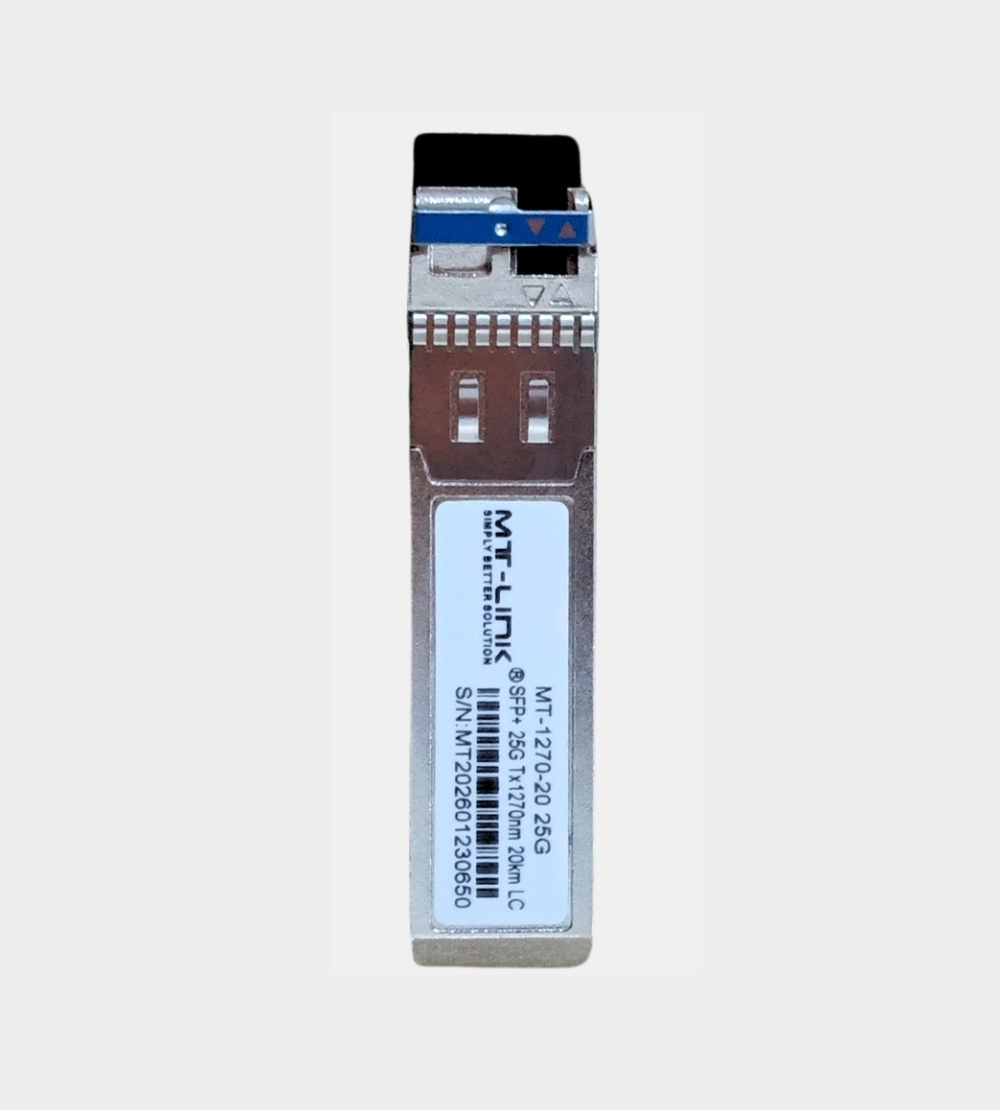

The MT-Link MT-1270/1330-20 25G is a high-performance 25G SFP28 BiDi optical transceiver pair designed for reliable long-distance fiber communication. Utilizing 1270nm and 1330nm wavelengths, the modules transmit and receive data over a single fiber core, helping reduce fiber infrastructure requirements while maintaining high-speed network performance.
This A+B paired solution supports transmission distances of up to 20 kilometers on single-mode fiber (SMF) and is ideal for enterprise networks, data centers, telecom deployments, FTTH backhaul, and high-bandwidth optical networking applications.
The module features a standard SFP28 hot-pluggable design, enabling easy installation and replacement without powering down equipment. It also supports DDM/DOM monitoring, allowing real-time visibility of optical parameters for improved network management and diagnostics.
Specifications
Item Specification
Brand MT-Link
Model MT-1270/1330-20 25G
Form Factor SFP28
Data Rate 25Gbps
Wavelength 1270nm / 1330nm (A+B Pair)
Fiber Type Single Mode Single Fiber (SMF)
Connector LC
Transmission Distance 20KM
Transmission Mode BiDi (Bidirectional)
Monitoring DDM/DOM Supported
Installation Hot-Pluggable
Operating Temperature -15°C to +65°C
Compatibility Compatible with standard OLTs, Switches, Routers, Servers, and Networking Equipment
Package Includes
1 × MT-Link 25G SFP28 1270nm Module (Side A)
1 × MT-Link 25G SFP28 1330nm Module (Side B)
Note: This product is supplied as an A+B matched pair and both modules must be used together for proper operation.
